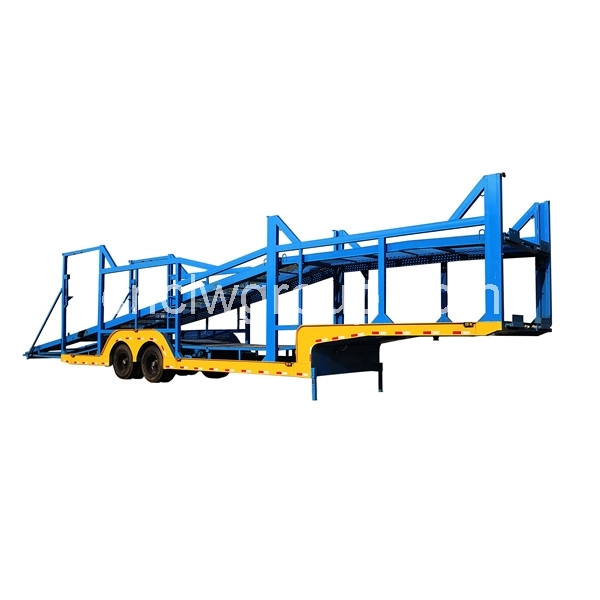

Chengli 2 axle Car Carrier Trailer

CLW922TCL 2 Axle Car Carrier Trailer
Car nos at once: can load 6 cars
Upper floor platform: Hydraulic lifting or manual lifting
Axle: 2 nos. FUWA 13 Tons axle
Tire: 8 pcs, 8.25R20 tires
Kingping: 2 inch or 3.5 inch
Description
Description

【Chassis Parameters】

2 axle car carrier semi trailer, FUWA 13 Tons axle, 8 pcs 8.25R20 radial tires, #50 or 90# kingpin, with support outriggers, rear bumper, tool box, etc.



【Supperstructures】

Chengli made car carrier trailer has two options, 6 car and 8 car position car carrier trailer;  it has double floors, upper floor can load 3 cars, down floor can load 3 cars; total length of the car carrier trailer is 15600x2600x3800mm, is made of material  of 3mm high strength bottom plate, 10mm steel plate top wing plate, 6mm middle support plate, 12mm down web plate; upper floor is lifted by hydraulic cylinders, very easy to operate and control.



【Vehicle Basic Parameters】



Basic Parameters

Manufacturer & Model

CLW brand, CLW9250TCL

Year

Condition new

Function

For car transportation

Car Pay Load

Load 6 cars, double layer(3 cars on upper, 3 cars on bottom)

Overall Dimension

15600*2700*3500mmincluding 1260mm extend plate)

Gross Weight

22000kg

Curb Weight

9800kg

Rated Weight

12200kg

Wheelbase

8200+1310mm

Saddle Load

10000kg

Front/rear overhang

-/3280mm

Tire Rack

1840/1840 mm

Car Loading System

Car Loading No.

Total 6 cars, Upper 3 cars + Down 3 cars

Material

3mm high strength bottom plate

Top Wing Plate

10mm steel plate

Middle Support Plate

6mm steel plate

Down Web Plate

12mm steel plate

Beam

350 “I” shape high strengthened steel beam/straight beam

Upper Loading Plate

Hydraulic lifting as a ramps for car loading

Axle

No.

2

Axle Load

13/13 (Ton)

Land Gear

Type

Movable type

Support load

≤10-Ton

Kingpin

Size

50# standard

Brake System

Type

Standard air brake, with service and emergency valve

ABS

Included

Electric

Wire Voltage

24V

Light

Standard three color taillights, side lights, warning lights, quick connector

Wheels & Tires

Tires

8.25R20 12PR radial tyres

No. of Tires

8 pcs

Tire Carrier Rack

One pcs

Suspension

Type

Steel spring plate

Plate No.

-/3/3, -/4/4, -/7/7, -/8/8, -/10/10, -/12/12, -/13/13

Color

Color

White color + blue ( or customized)

Others

Reflective Stickers

Standard



【Real Case of Car Carrier Trailer】

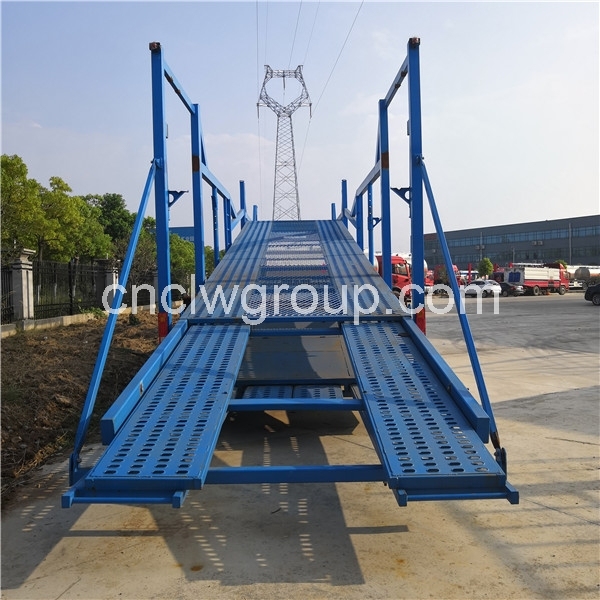

Chengli CLW Car Carrier Trailer Real Usage Case: The upper floor is tilting to be a ramp for car easily climbing onto the top floor;

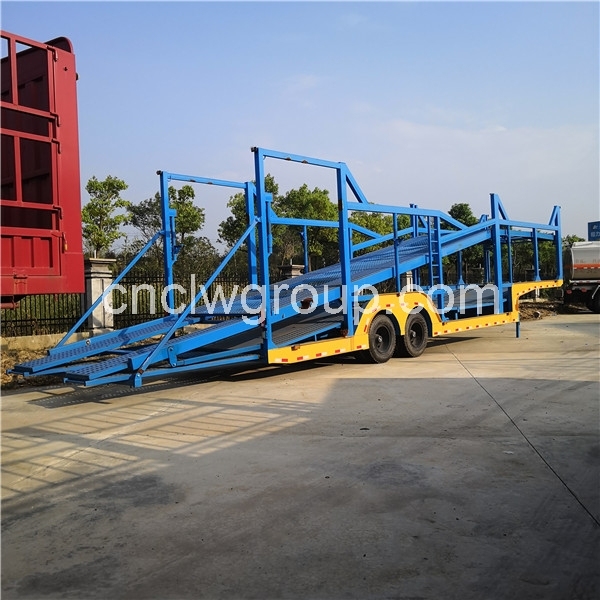

Chengli CLW Car Carrier Trailer Real Usage Case: The upper floor is tilting to be a ramp for car easily climbing onto the top floor;

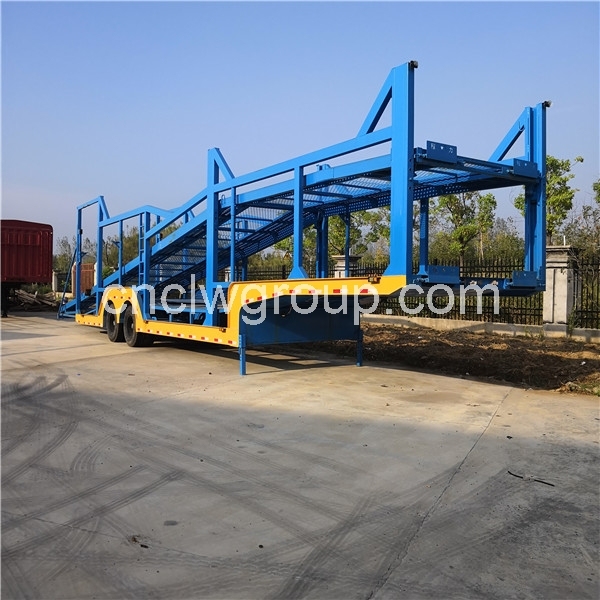

Chengli CLW Car Carrier Trailer Real Usage Case: The upper floor is tilting to be a ramp for car easily climbing onto the top floor;

Chengli CLW Car Carrier Trailer Real Usage Case: The upper floor is tilting to be a ramp for car easily climbing onto the top floor;
