Chengli 5,000 liter Milk Tank Truck

Dongfeng 4x2 5,000 liter Milk Tank Truck
Engine: 90HP / 120HP optional
Material: food grade Stainless Steel 304-2B
Tank insulation: with 80mm PU foam insulation
Pipe & Valve: Food grade stainless steel valve
Self cleaning: CIP auto cleaning inside ta
Description
Description

【Chassis Parameters】

Dongfeng Dolicar chassis, condition new, 3300mm wheelbase, Yunnei 90HP or Yuchai 120HP Euro3 dieseI engine, manual 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2 ton front axle, 3.5 ton rear axle, air brake, power assist steering, power window, etc.



【Milk Truck Purpose】

CLW5070GNYD3 5,000 liter milk tank truck, also called milk transporter, milk truck, fresh milk tank truck, mainly used for transporting fresh milk, fresh goat milk, fresh fruit juice, drinking water, edible oil, palm oil, beer, ice cream, cream and other liquid foods.



【Vehicle Basic Parameters】

Model CLW5070GNYD3
Chassis brand Dongfeng
New or Used New
Overall dimension 5990x2000x2450mm
Gross weight 7360kg
Curb weight 3250kg
Load 5 tons
Wheelbase 3300mm
Engine power Yunnei 90HP or Yuchai 120HP
Fuel type DieseI
Transmission 5 speed manual gearbox
Brake air brake
Axle load 2/3.5 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h

Milk Tank:

5,000 liter volume, inside tank is made of food grade stainless steel 304-2B, middle is 80mm PU foam insulation layer, outer plate is stainless steel 304L; with one pcs manhole, 1 pcs stainless steel outlet ball valve, 1 pcs cleaning water inlet valve.

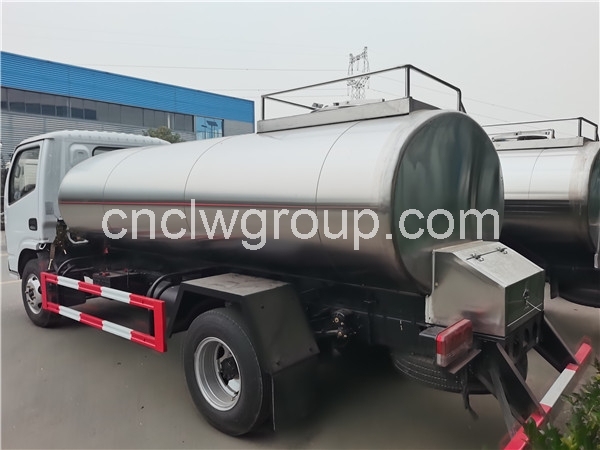

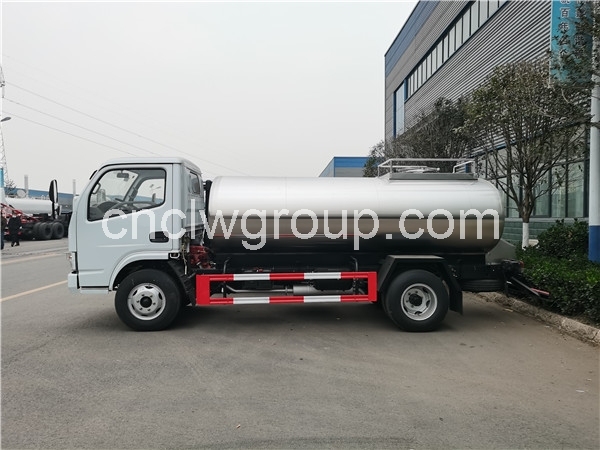

【Multi-directional Pictures】



【Milk Truck Special Features】

  1. Tank inside material is made of FOOD GRADE stainless steel 304-2B plate, tank can be divided into multi compartments, inside tank is required to be very smooth, no sharp angle. Each milk tank is equipped with a CIP (cleaning device), and the tank is equipped with a washer, which is automatically sprayed and cleaned by water, and there is no dead angle at 360°.
  2. The middle of the tank is an insulating layer, which has a heat preservation effect and prevents the fresh milk from deteriorating. When the temperature difference between day and night is large, the 24-hour temperature change does not exceed 1°C. The thermal insulation material adopts 80mm thick polyurethane foam material for thermal insulation.
  3. The outer layer of the tank (the protective layer that wraps the insulation layer) is made of 304L stainless steel plate. The stainless steel outer skin and tail valve box are beautiful in appearance, the structure of the whole vehicle is reasonable, the weight is light, and the strength is good.
  4. Each bin has its own unloading port (self-retaining valve) and feeding port (manhole).



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
