CLW Dongfeng 6x6 off road grabber crane truck for log wood

- Brand: CLW, Dongfeng manipulator
- Crane: 6.3 ton, with wood grabber
- Engine: Cummins 260HP
- Cargo box: 5200x2350x600mm
Vehicle load: 20 tons
Whatsapp:+8618307220638
E-mail: [email protected]
Http://www.cnclwgroup.com
Description
Description

【Chassis Parameters of 12 Ton Truck Mounted Crane

Chassis specs of  of CLW Dongfeng 6x6 off road grabber crane truck for log wood: 6.3 ton crane truck 6x6 off road terrian cab chassis, condition new, 4800+1350mm wheelbase, Yuchai brand YC6A260-33 260HP Euro3 dieseI engine, manual 10-speed transmission, 10+1 pcs 12.5R20 off road tires, with one spare tire, 6.5 ton front axle, 2*13 ton double reudction rear axle, air brake, engine brake, power assist steering, etc.  This heavy duty 6x6 boom crane truck chassis use a luxury grey color cab, its beam and suspension all strengthened enough for heavy duty crane installlation and fit the working conditions. manipulator crane truck chassis's axle use front axle 6.5 ton, and rear axle double mounted 13 tons axle, which is strong enough for normal 20 tons load. clw 6x6 truck mounted crane 12 tons use clw brand sq12sa4 12 ton 5-section telescopic crane, and also the truck with crane can choose xcmg 12 ton, sany 12 ton, unic 12 ton, shimei 12 ton, shenbai 12 tons and other brands crane for the installation. and also the crane lifting capacity for this 6x4 truck crane chassis, we can choose 6.3 ton, 8 ton, 10 ton, and maximum 14 tons crane for the installation and for customer's different demands.



【Upper Structure Parameters of Wood Grabber Truck Mounted Crane

Crane specs of  of CLW Dongfeng 6x6 offroad grabber crane truck for log wood: clw brand 6.3 ton crane, 4-section straight extension arm, maximum lifting height 12.8 meters, maximum working radius 10.1 meters, 360° continuous slewing, double side operation, optional with remote throttle, lighting, leveling bubbles, etc. Cargo box type: side wall fence cargo box, 5200x2350x600mm, 3mm side, 4mm bottom plate.
CLW Dongfeng 6x6 off road grabber crane truck for log wood
(6x6 off road terrian 6.3 ton crane boom truck pictures)

Truck mounted crane features:
CLW Dongfeng 6x6 offroad grabber crane truck for log wood:

for crane brand, we here have available xcmg crane, unic crane, sany crane, hiab crane, clw crane, shimei crane, shenbai crane, and other brand cranes.
for crane's lifting capacity, we have small lifting capacity boom truck crane 2 ton crane truck, 3.2 ton crane truck, 4 ton truck with crane, 5 ton truck mounted crane, and other xcmg 4 ton crane truck boom, hiab 8 ton boom truck crane, unic 3 ton crane truck, etc;  and also we have medium lifting capacity truck mounted crane such as 6.3 ton boom crane truck, 8 tons boom crane truck;  and also 6x4 truck mounted crane and 8x4 boom crane truck heavy duty capacity from 10 tons, 12 tons, 14 tons, 16 tons, 18 tons, 20 tons, 25 tons, 30 tons truck mounted crane and hydraulic crane truck for sale.

【Vehicle Basic Parameters of 6x6 Boom Crane Truck Mounted Crane】

Main Vehicle Specifications
Model CLW5250JSQCL3
Chassis brand CLW
Wheeldrive 6x6 LHD
New or Used New
Overall dimension 8650x2520x3850mm
Cargo box 5200x2350x600mm
Gross weight 25000kg
Curb weight 13500kg
Load 20 ton
Wheelbase 4800+1350 mm
Engine power Yuchai YC6M260-33 260P Euro3
Fuel type DieseI
Transmission manual10-speed
Brake air brake, engine brake
Axle load 6.5 tons / 2*13 tons
Tire 6+1 pcs, 12.5R20 off road tyres
Max speed 90km/h
Crane Specifications
Brand CLW
Model SQ6.3ZA4
Maximum Lifting Weight 6.3 ton @ 2 meter
Max Lifting Moment 12.5 T.m
Max Lifting Height 12.8 meter
Max Working Radius 10.1 meter
Slewing Angle 360°
Outrigger Hydraulic
Log Grabber 1 ton lifting capacity @ 6m
3 ton lifting capacity @ 2m

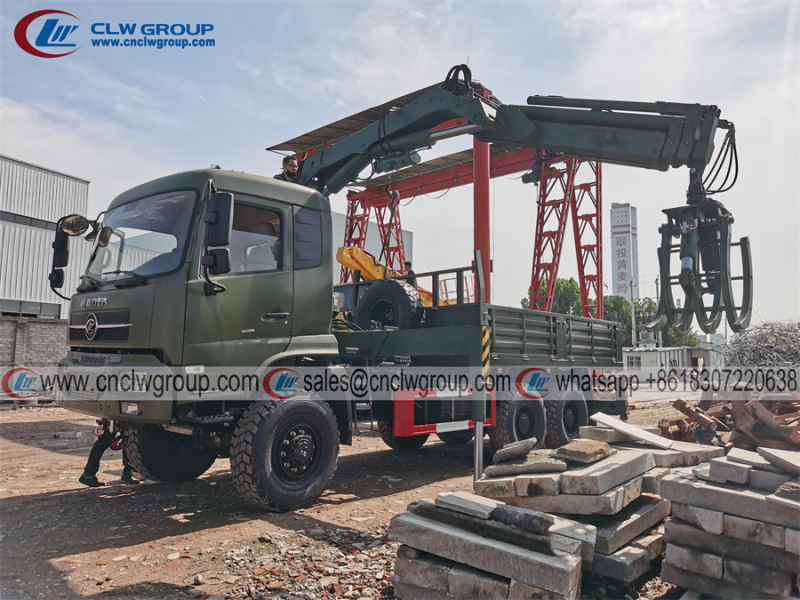

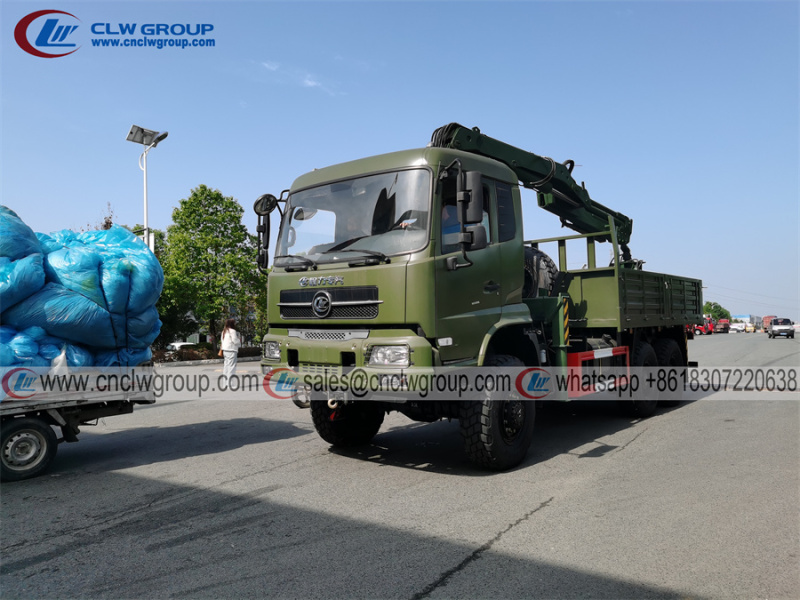

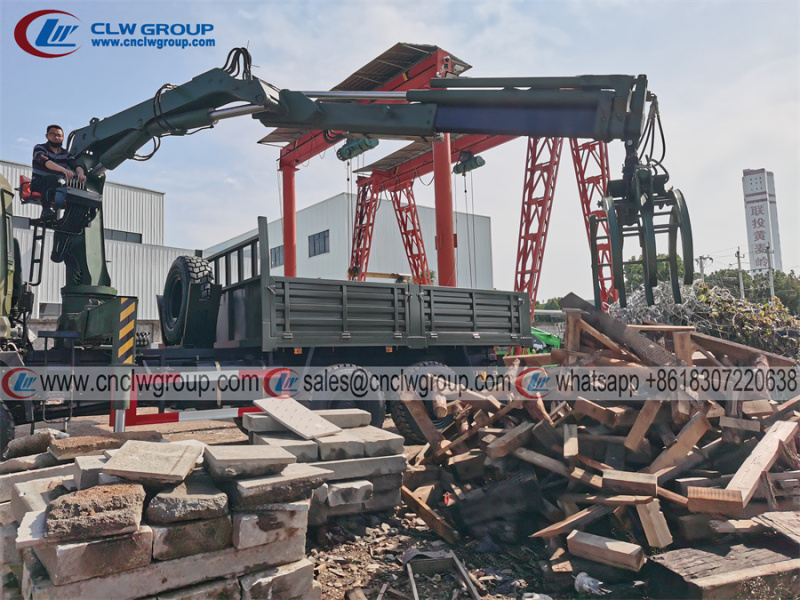

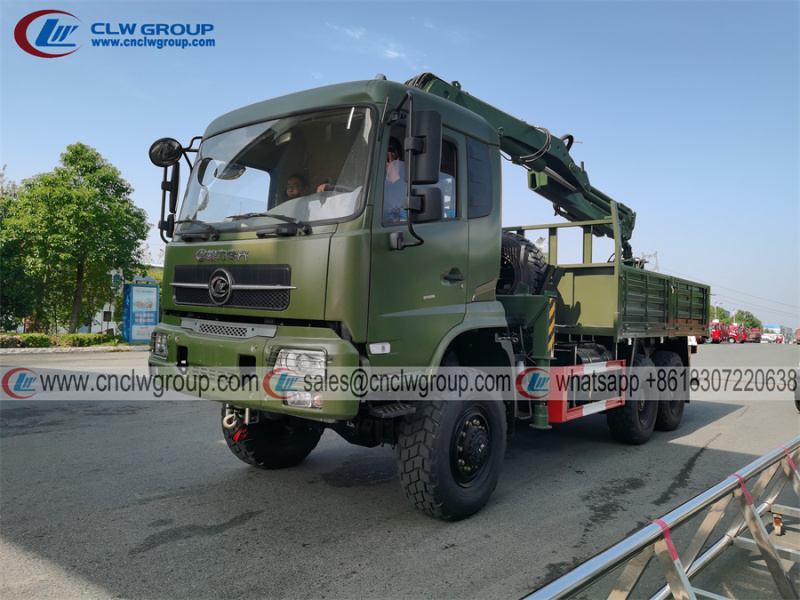

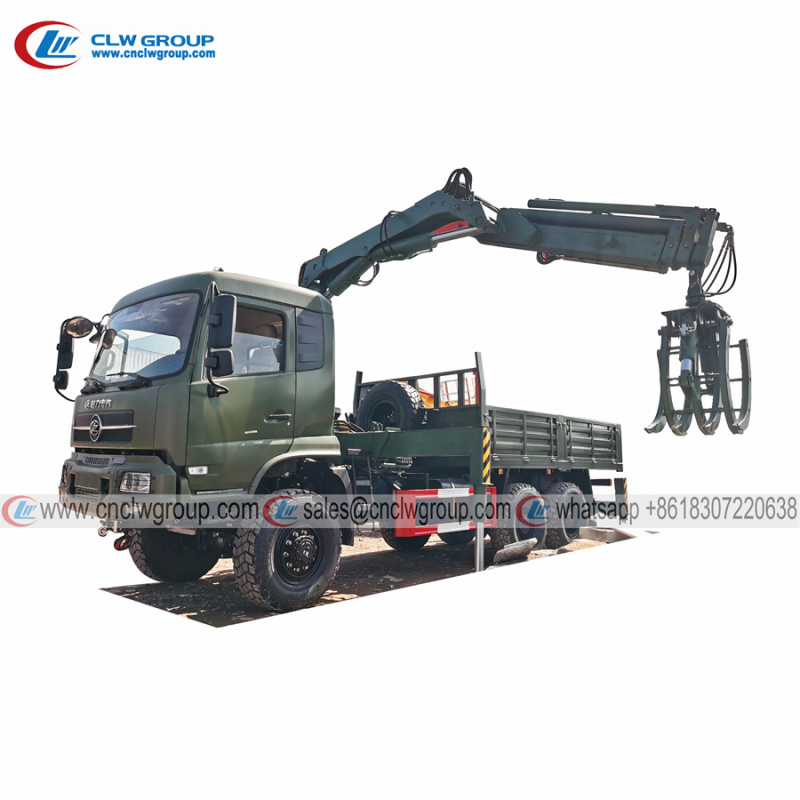

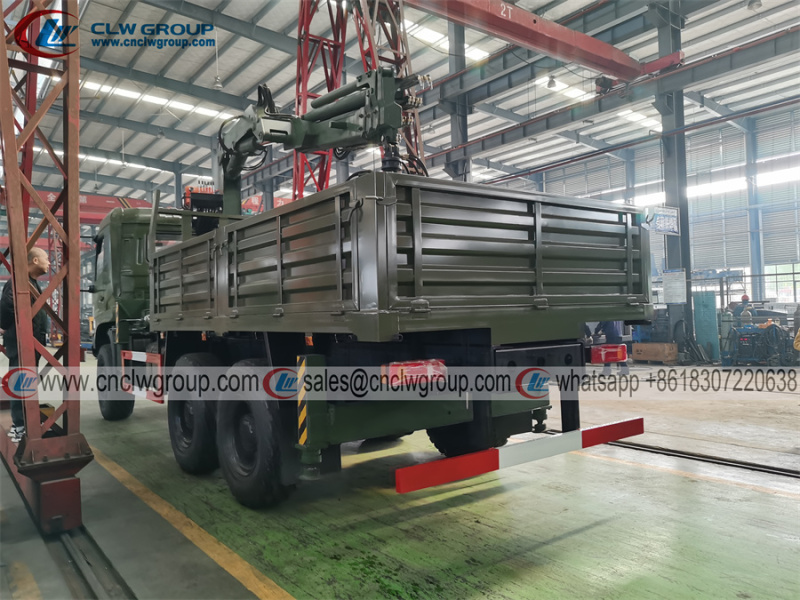

6x6 boom crane truck mounted grabber for sale pictures:
CLW Dongfeng 6x6 off road grabber crane truck for log woodCLW Dongfeng 6x6 off road grabber crane truck for log woodCLW Dongfeng 6x6 off road grabber crane truck for log woodCLW Dongfeng 6x6 off road grabber crane truck for log wood

【Crane Parameters of Boom Truck Mounted Crane
