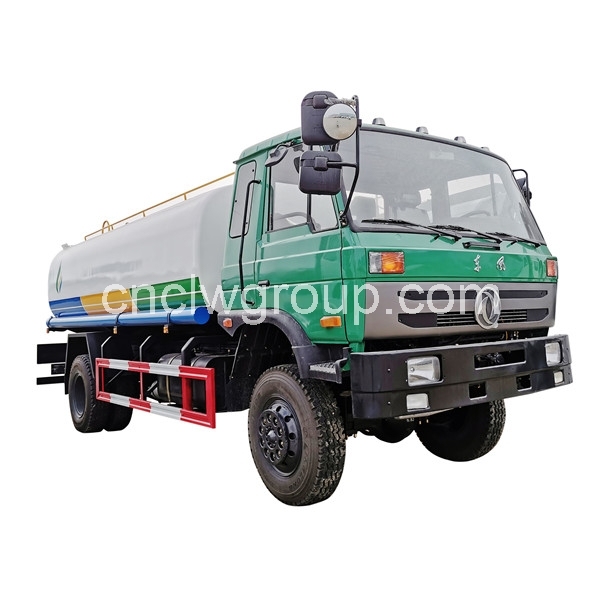

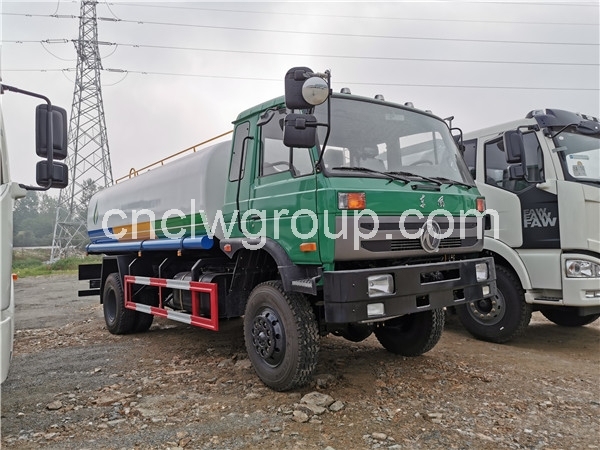

Dongfeng 4x4 12,000 liter Water Truck

【Chassis Parameters】

Dongfeng 153 cab  chassis, 4x4 AWD, condition new, single cab, 3 seats with a sleeper, 4500mm wheelbase, Cummins 190HP Euro 3 dieseI engine, manual 8-speed transmission with transfer case, 2WD & 4WD switch, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.

【Upper Structure Parameters】

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 12,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
