【Chassis Parameters】
Dongfeng Dolicar chassis, condition new, 3800mm wheelbase, Yudong 129HP Euro3 dieseI engine, 5-speed transmission, 8.25-16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, etc.
- Dongfeng Dolicar sewage suction truck
- Yudong 129HP engine
- 5-speed transmission
- 8.25-16 radial tire
- Sewage tank: 5500 liters, Clean Water tank: 2500 liters
- Sewage pump: 6m3/h vacuum sewage pump
- Water pump: 24MPa high pressure pump
【Upper Structure Parameters】
- Sewage tank volume: 5500 liter, box body is made of carbon steel, 5mm tank body, 6mm sea head
- Water tank volume: 2500 liter, carbon steel, 4mm tank body.
- Sewage pump: SK-6 vacuum pump
- Water pump: German jointed venture PINFL 24MPa high pressure pump
- High pressure hose reel: 60m hose reel with high pressure cleaning nozzle
- Others: tank hydraulic lifting rear dump, with a DN150mm discharge valve at rear, hydraulic open tailgate, with a 8m suction hose, with tank level view-window, etc
| Model | CLW5090GQWD3 | |
| Chassis brand | Dongfeng | |
| New or Used | New | |
| Overall dimension | 6995x2350x2890mm | |
| Gross weight | 9850kg | |
| Curb weight | 5580kg | |
| Load | 8 tons | |
| Wheelbase | 3800mm | |
| Engine power | Yudong 129HP Euro3 | |
| Fuel type | DieseI | |
| Transmission | Manual, 5-speed | |
| Brake | air brake | |
| Axle load | 2.5 tons / 5.5 tons | |
| Tire | 6+1 pcs, 8.25-16 radial tires | |
| Max speed | 90km/h | |
| Sewage Tank | Tank Volume | 5500 liter |
| Material | 5mm carbon steel tank body, 6mm seal head | |
| Tailgate | Hydraulic opening | |
| Sewage Suction System |
Sewage pump |
Yifeng SK-6 vacuum pump 6m3/h, 1000rpm rotary, 95% vacuum |
| Suction Hose | 1 pcs suction hose, 7 meters long | |
| Suction depth | ≤ 7 meters | |
| Clean Water Tank |
Volume | 2500 liters |
| Material | Carbon steel tank with anti-corrosion treatment | |
| Inlet | with 1 pcs fire hydrant joints | |
| Drain outlet | 1 pcs | |
Pipe Dredge & Cleaning System |
Cleaning Pump | German PINFL 24MPa high pressure |
| Hoser reel | 60m high pressure hose reel | |
| Cleaning nozzle | with 10 pcs high pressure cleaning nozzles | |
| Cleaning pipe diameter | pipe or sewer DN100 ~ DN1000 | |
|
Main Components |
Tank unloading | Hydraulic rear dumping |
| Discharge valve | 1 pcs DN150mm aluminum alloy outlet | |
| Level view-window | 1 pcs | |
| Oil & water separator | Included | |
| Anti-overflow valve | Included | |
| Wash hand tank | 1 pcs | |
| Performance |
Max suction depth | 7 meters |
| Suction full-tank time | ≤ 10 minutes | |
| Positive pressure pump water time | ≤ 5 minutes | |
| Pipe dredge & cleaning diameter | DN100 ~ DN1000 | |

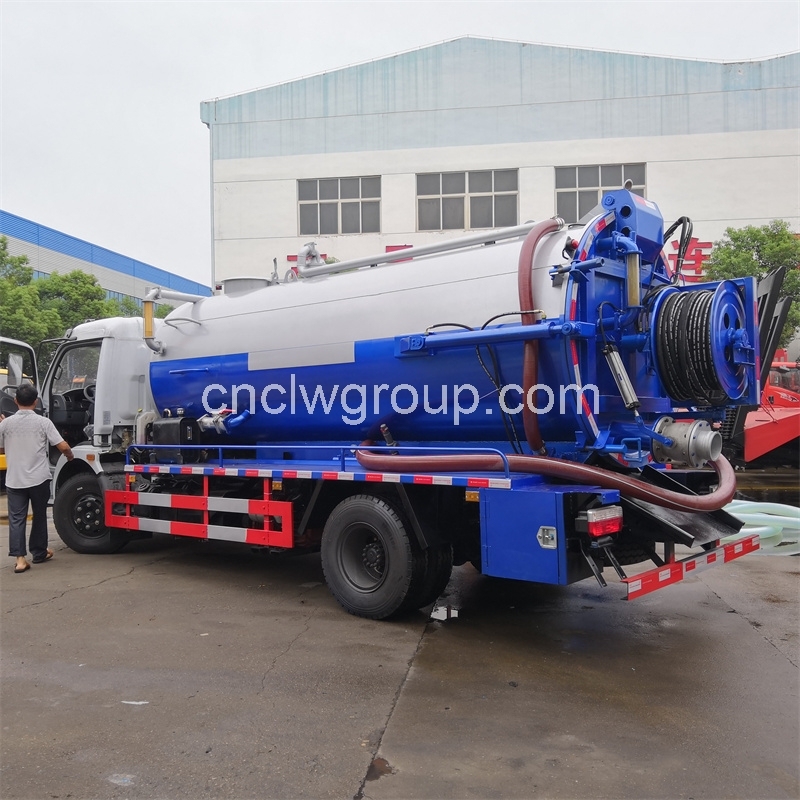

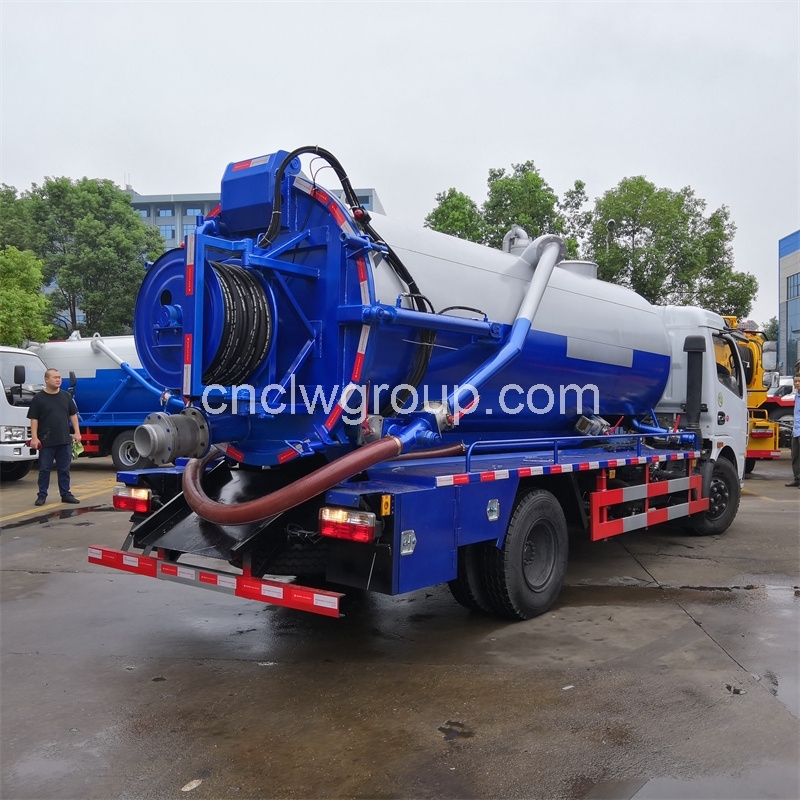

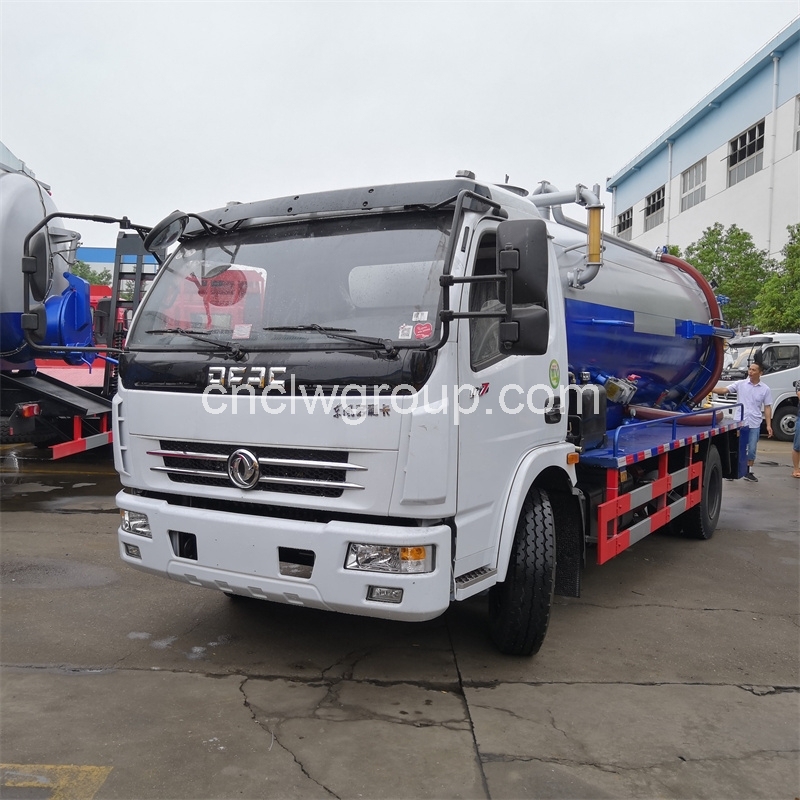

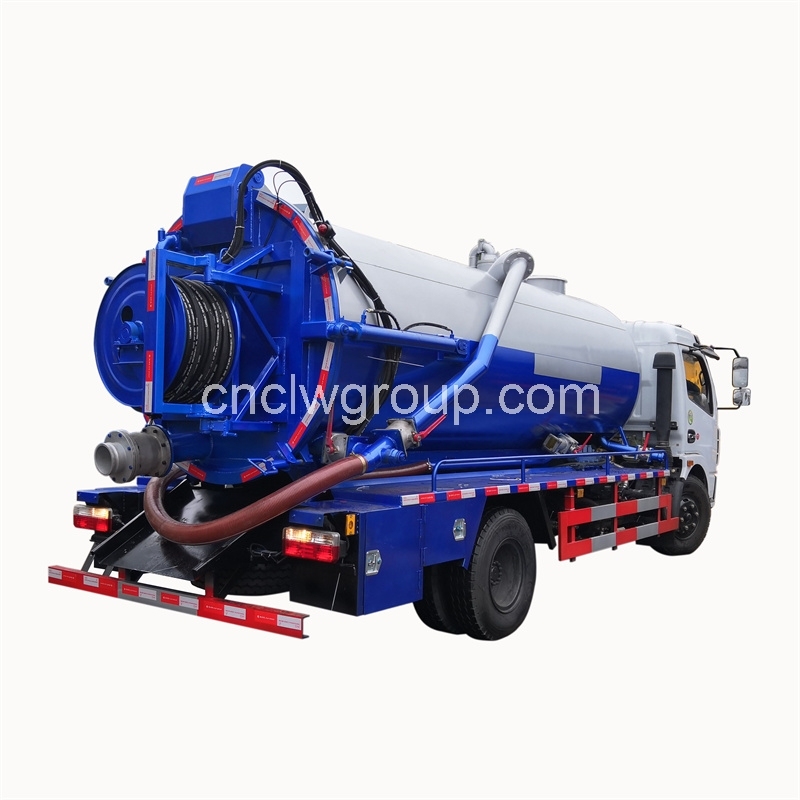

【Multi-directional Images】
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
