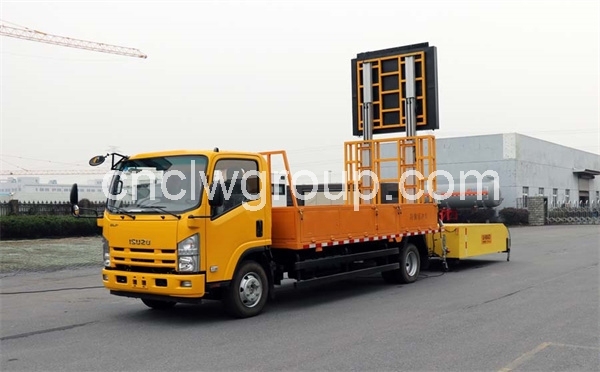

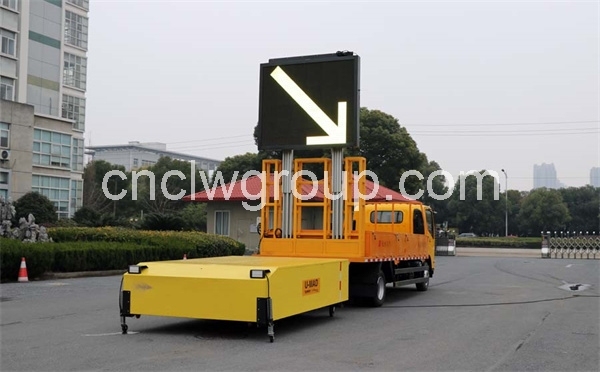

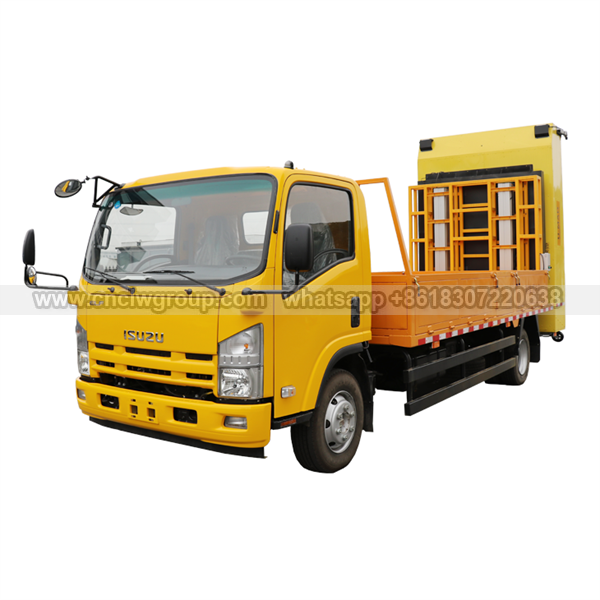

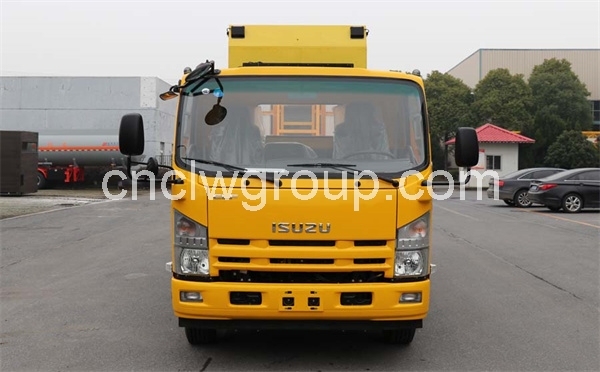

ISUZU 100km/h Collision Attenuator Truck

ISUZU 4x2 190HP Euro5 truck
MLD 6-speed transmission
235/75R17.5 tire
TMA-100K model anti-collision buffer
for 100km/h car anti-corrosion
Description
Description

【Chassis Parameters】

Famous brand Japan ISUZU chassis, condition new, 3815mm wheelbase, Qingling ISUZU 190HP Euro5 dieseI engine, MLD 6-speed transmission, 235/75R17.5 tires, with one spare tire, 4 ton front axle, 7 ton rear axle, power assist steering, with air conditioning, etc.



【Upper Structure Parameters】

  • Anti-collision buffer truck is mainly used for highway construction, tunnel construction, and highway construction. It minimizes the safety risks of construction vehicles, maintenance personnel and accident handling traffic poIice during the maintenance of urban roads and expressways. The anti-collision buffer energy-absorbing module of the anti-collision buffer vehicle is mainly composed of an on-board anti-collision buffer pad and a guide sign frame, which acts as a buffer guard behind the construction work vehicle. In the event of a rear-end collision, a buffer area can be constructed between the vehicle involved in the accident and the construction work area in front of it, and the energy of the impact can be absorbed through the deformation of the machine tool structure to minimize the probability of collisions for the protected personnel and equipment.
  • Anti collision buffer: TMA-100K model anti-collision buffer is made by China famous brand company, rear anti-collision bag of the box adopts a 100K model produced by a Chinese well-known brand, a high-performance hydraulic system, which can realize rapid lifting and dropping operations, convenient for equipment transportation and transition, one-key start function, equipped with 10 customized warning lights, LED Warning display.
  • This anti-collision buffer can bear impact of a 2 ton car hitting at maximum 100km/h, mainly used on expressway, highway, etc, for protecting workers when doing maintenances on road.
  • Chasiss brand optional: HOWO,  DONGFENG, JMC, FOTON, SHACMAN, JAC, JAPAN BRAND, LIUQI CHENGLONG, etc



 Specifications of ISUZU 4x2 Anti-Collision Buffer Truck
Model CLW5100TFZQ5
Chassis brand & Year
ISUZU, condition new
Wheel Drive 4x2, LHD
Overall Dimension 7680*2500*3900mm
Flat Bed Load Box 4800*2350*450mm, 3mm side wall, 4mm deck plate
Rear Buffer/Crash Pad Details Buffer Cushion Model: TMA-100K model anti-collision buffer is made by China famous brand company, rear anti-collision bag of the box adopts a 100K model produced by a Chinese well-known brand, a high-performance hydraulic system, which can realize rapid lifting and dropping operations, convenient for equipment transportation and transition, one-key start function, equipped with 10 customized warning lights, LED Warning display.
TMA-100K Data

Model: 100K

Impact force: 100km/h

Standard: meet "American MASH2016 Anti-Crash Pad Crash Test Standard"

Weight(not including flipover shelf): 350kg

Buffer cushion length: 3125mm

Buffer cushion width: 2300mm

Buffer cushion thickness: 680mm

Ground clearance: 200-300mm

Rated voltage: 24V DC

Rated power: 2kW

Gross Weight 10000kg
Curb Weight 9300kg
Engine ISUZU 190HP Eruo5 diesel engine
Wheelbase 3815mm
Tires: 6+1, 235/75R17.5
Cabin 3 seats, with a sleeper bed, with A/C
Transmission Manual, 6 front gears and 1 rear gear
Brake Air brake
Max Speed 90km/h



【Relation Products of Anti-Collision Attenuator Truck】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
