【Chassis Parameters】

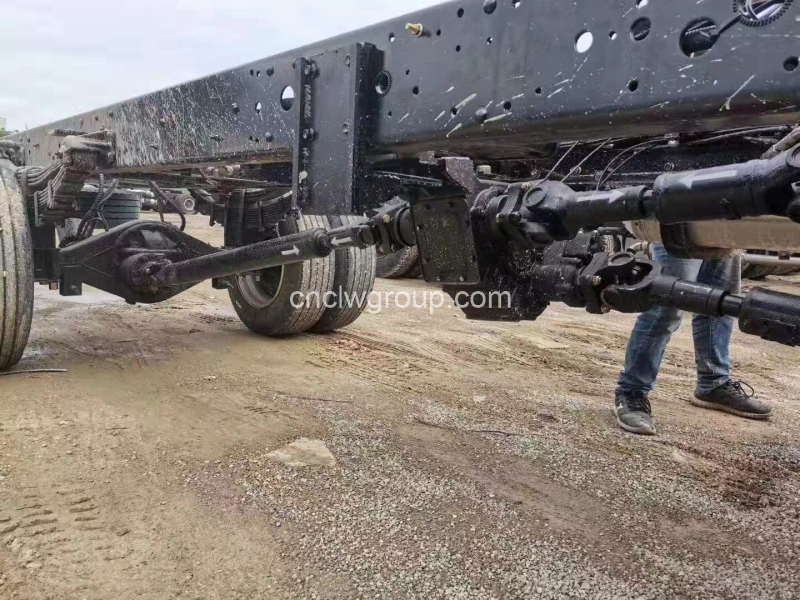

ISUZU 4x4 Dump Truck's ISUZU 700P cab chassis, 4x4, condition new, 3 seats, 3815mm wheelbase, ISUZU 190HP Euro 5 dieseI engine, ISUZU 6-speed transmission + transfer case, 2WD & 4WD switch, 8.2520 radial tires, with one spare tire, ISUZU 4 ton front axle, ISUZU 7 ton rear axle, hydraulic brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】

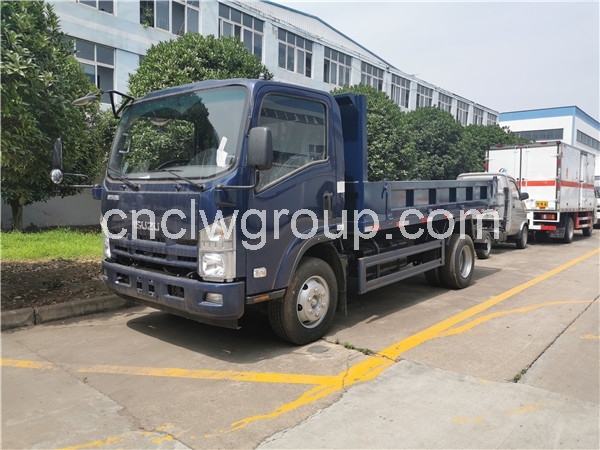

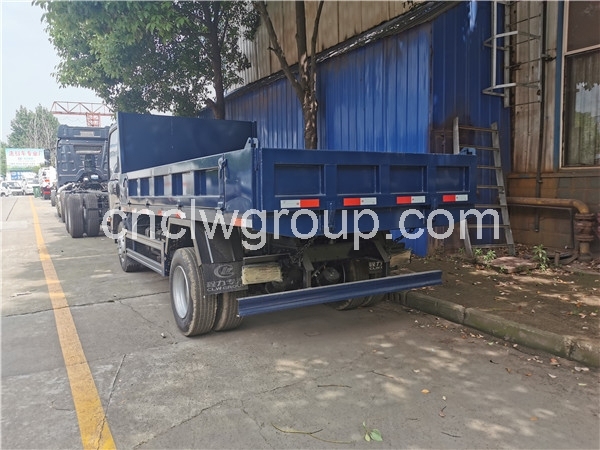

ISUZU 4x4 Dump Truck Dump box size 4800x2000x800mm, total 8 cubic meter box volume; dump box material 3mm side wall, 5mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.
| Model | CLW5100ZZXQ5 |
| Chassis brand | ISUZU |
| Wheel drive | 4X4, LHD |
| New or Used | New |
| Overall dimension(mm) | 6850x2280x2850 |
| Dump box dimension(mm) | 4800x2100x800 |
| Material of dump box | carbon steel, 3mm side, 5mm floor |
| Unloading method of dump box |
middle double cylinder lifting jack |
| Gross weight(kg) | 10000 |
| Curb weight(kg) | 4500 |
| Load Weight(kg) | 6 tons |
| Wheelbase(mm) | 3815 |
| Engine power | ISUZU 190HP Euro5 |
| Fuel type | DieseI |
| Transmission |
ISUZU 6 - speed with transfer case 2WD & 4WD switch |
| Brake | Hydraulic brake |
| Axle load(front/rear) | ISUZU 4 Tons/7 Tons |
| Tire | 6+1 pcs, 8.25R20 radial tires |
| Max speed | 90km/h |
