ISUZU FVR34 15m3 Garbage Compactor Truck

- Chassis Brand: ISUZU
- Engine:6HK1 240HP
- Volume: 15 m3
- Type: garbage compactor,rear loader
- Tire:6+1pcs 295/80R22.5
- Whatsapp/wechat:+8618307220638
- Email:[email protected]
- Http://www.cnclwgroup.com
Description
Description

【Chassis Parameters】

Cab chassis of ISUZU FVR34 15m3 garbage compactor truck, Qingling ISUZU FVR cab chassis, single row cabin, condition new, 3 seats, 5000mm wheelbase, Isuzu 6HK1 240HP dieseI engine, manual 6-speed transmission, 295/80R22.5 radial tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, air brake, ABS, 200L fuel tank, power assist steering, air conditioning,power window, central lock, etc.  For some users who like garbage compactor trucks with powerful engine, ISUZU FVR is a good option to be used for rear loader refuse vehicles.
ISUZU FVR also upgraded to new cab chassis which is GIGA cabin, has a better and confortable cab for users.  Contact if interested.
ISUZU FVR34 15m3 garbage compactor truck

【Upper Structure Parameters】

ISUZU FVR34 15m3 garbage compactor truck
- Chengli produced garbage compressor trucck upper body, with 15 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L/1100L waste bins, control panel+manual lever+inside cab controlled.
- The new flat arc-shaped car body, the material of the garbage compactor truck body is high-quality carbon steel of Wuhan Iron and Steel, the effective compression volume is 15 cubic meters, trash compactor truck 's PLC one-key operation control, integrated flashlight operation mode, dual electric control on both sides, with cab operation, and strengthened floor support, Two-way compression, open and easy-to-clean sewage tank. The good configurations and functions makes Isuzu garbage compressed truck so popular around the world.
- The compression garbage truck adopts electro-hydraulic integration technology, with the help of automatic control system of machine, electricity, and hydraulic, computer control, manual operation system, and special devices such as filler and dozer to realize garbage dumping, crushing or squashing , Powerful loading, squeezing the garbage into the carriage, garbage compressed truck price, compacting and unloading, all the sewage enters the sewage collection tank, which solves the problem of secondary pollution in the garbage transportation process. Isuzu garbage compactor truck is really good quality and convenient when use it.
- The compression garbage truck has the functions of automatic repeated compression and peristaltic compression. Isuzu garbage compactor truck has the advantages of high compression ratio, good sealing performance, large loading capacity, convenient operation, good environmental protection, and high utilization power of the whole vehicle. The operation is automated, and the garbage collection method is simple and efficient.This is also why Isuzu fvr 240hp waste compactor truck so good quality and popular around the world.
- Optional rear turning mechanism of Isuzu garbage trash compactor truck: 1. Hanging plastic bucket turning mechanism; 2. Hanging iron barrel flip-over mechanism; 3. Swing arm flip-over mechanism; 4. Dustpan bucket flip-over mechanism.

Model of Isuzu garbage compactor truck CLW5180ZYSQ5
Chassis brand ISUZU (FVR)
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8650x2500x3300mm
Gross weight 18000kg
Curb weight 9800kg
Rated Load 8-10 ton
Wheelbase 5000mm
Engine power ISUZU brand 6HK1 240HP
Fuel type DieseI
Transmission Manual 6F & 1R
Brake hydraulic brake
Axle load 6.3T / 13T
Tire 6+1 pcs, 295/80R22.5 tires
Max speed 90km/h
Superstructure Parameters of Isuzu garbage compactor truck

Volume:  15m3

Material of waste body: 5mm side, 5mm bottom

Rear loader mechanism: waste bin flip-over board, for 120L/240L/660L waste bin or customized for 1100L waste bins

Control: manual operate lever + electric-hydro control box + cabin control box

Loading hopper tailgate: 1.5-2cbm

Waste liquid collection tank: included



Reference Photos of ISUZU FVR 15cbm garbage compactor truck:

ISUZU FVR 15m3 garbage compactor truck

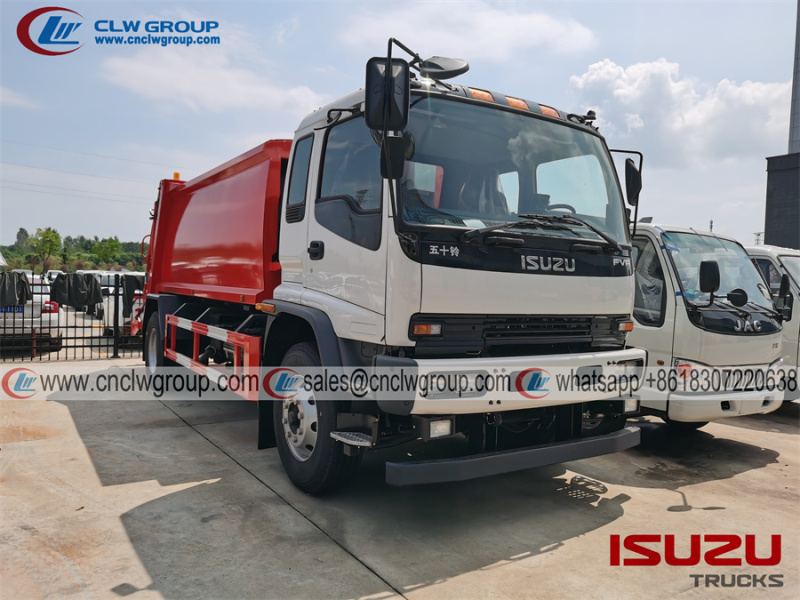

Picture  1 of ISUZU FVR 15cbm garbage compactor truck:

ISUZU FVR 15m3 garbage compactor truck

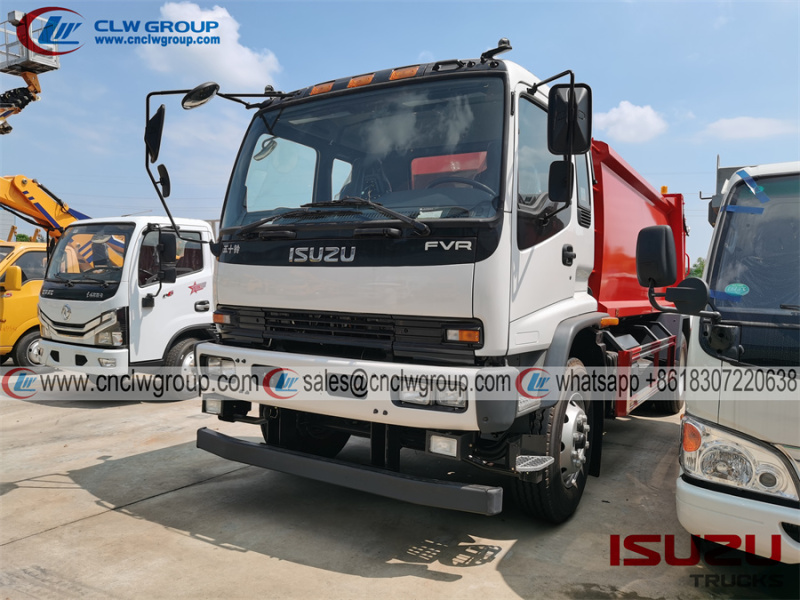

Picture 2 of ISUZU FVR 15cbm garbage compactor truck:1

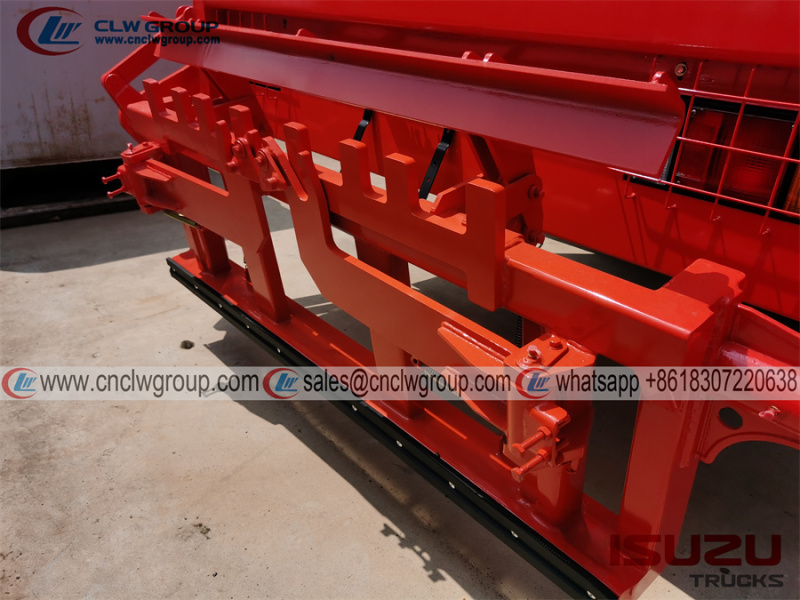

ISUZU FVR 15m3 garbage compactor truckFoot board and handle on both side for workers to stand
foot board of ISUZU FVR 15m3 garbage compactor truck

【Other Similar Garbage Compactor Trucks for Comparison】

SHACMAN L3000 14m3 Garbage Compactor Truck Foton Aumark 12m3 15m3 Garbage Compactor Truck HOWO 15m3 Garbage Compactor Truck
SHACMAN L3000
Weichai 210HP Euro2 diesel engine
8-speed manual gearbox
10.00R20 tyres
4.8T/10T axle load
air brake
power steering, power window, central lock, air conditioning
14 m3 garbage compactor body
bin lifter 120L/240L/660L trash bins
cab control+manual control+remote control
FOTON Aumark
Cummins 210HP Euro2 diesel engine
8-speed manual gearbox
11R22.5 tyres
5.5T/11.5T axle load
air brake
power steering, power window, central lock, air conditioning
12 m3 or 15 m3 garbage compactor body
bin lifter 120L/240L/660L trash bins
cab control+manual control+remote control
SINOTRUK HOWO
Sinotruk 290HP Euro2 diesel engine
10-speed manual gearbox
295/80R22.5 tyres
7.5T/16T axle load
air brake
power steering, power window, central lock, air conditioning
15 m3 garbage compactor body
bin lifter 120L/240L/660L trash bins
cab control+manual control+remote control


[Structures & Features of Garbage Compactor]

ISUZU TRUCK SERIES:

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
