【Chassis Parameters】

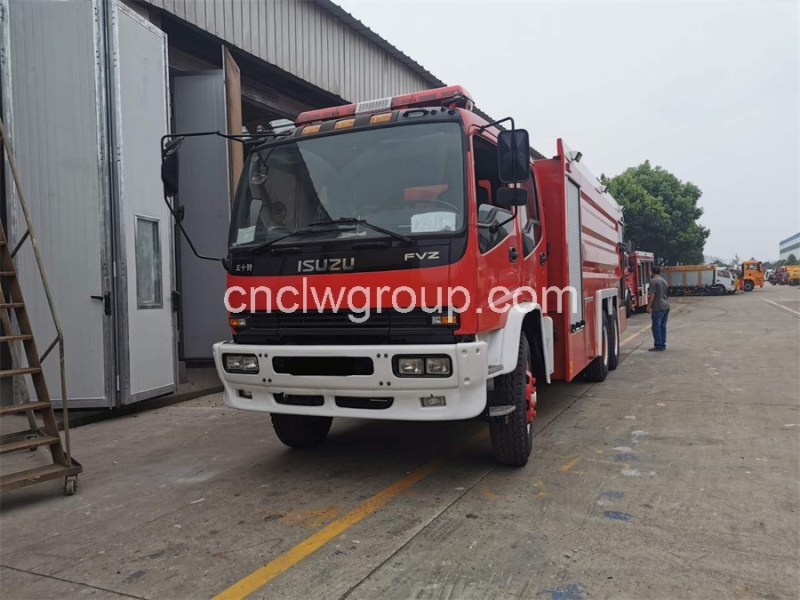

ISUZU FTR cab chassis, condition new, double cabin, 3+3 seats, four doors, 4650+1370mm wheelbase, ISUZU 300HP Euro 5 dieseI engine, FAST 9-speed transmission, 11.00R20 radial tires, with one spare tire, ISUZU 7 ton front axle, ISUZU 18-ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Chengli CLW brand fire truck has near 20 years experiences, mainly for fire engine,water supply fire truck,rescue fire truck,fire equipment, special fire truck, etc.

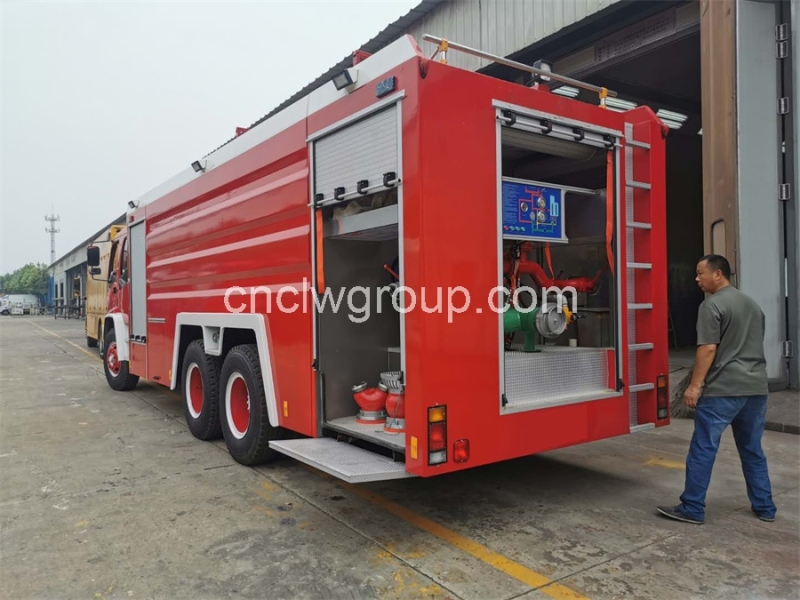

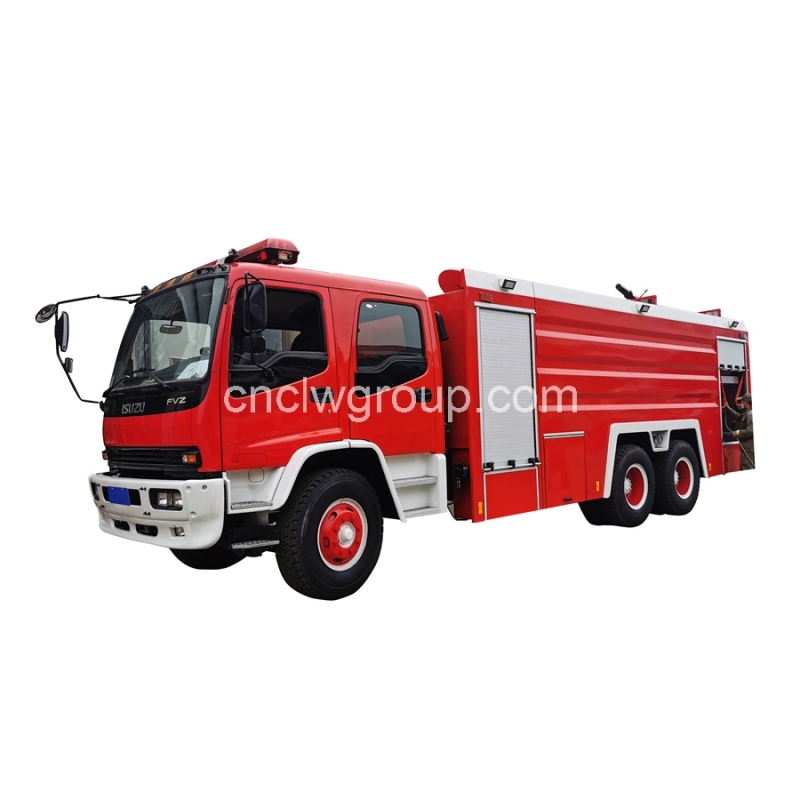

CLW5250GXFPM60Q5 ISUZU fire truck, water tank volume 15,000 liter, stainless steel 304 tank body; foam tank volume 3,000 iter, stainless steel 304 made; equippepd with CB10/60 fire pump, PL48 dual-use water & foam fire monitor, water jetting range 65m, foam jeeting range 50m; with 4 pcs fire outlet, 2 pcs fire inlet, 1 pcs suction port, equipment compartment, pump room, fire tools and accessories.
| Model | CLW5250GXFPM60Q5 |
| Chassis brand | ISUZU |
| Cabin | Double cabin, 3+3 seats, with four doors |
| New or Used | New |
| Overall dimension | 9850x2500x3620mm |
| Gross weight | 31000kg |
| Curb weight | 12800kg |
| Load | 18000kg |
| Wheelbase | 4650+1370 mm |
| Engine power | ISUZU 300HP Euro5 |
| Fuel type | DieseI |
| Transmission | FAST 9- speed |
| Brake | Air brake, ABS |
| Axle load | ISUZU 7/18 Tons |
| Tire | 10+1 pcs, 11.00R20 radial tires |
| Max speed | 90km/h |
【Fire Fighting Parameters】
| Water Tank | Volume | 18,000 liter |
| Material | Stainless steel 304 | |
| Manhole | 1 pcs, DN460mm | |
| Inlet | 2 pcs | |
| Outlet | DN80mm, manual butterfly valve | |
| Drain valve | 1 pcs | |
| Foam Tank |
Volume | 3,000 liter |
| Material |
Stainless steel 304 |
|
| Fire Pump | Brand & Model | Rongsheng or Xiongzhen CB10/60 |
| Flow | 3,600 liter/min | |
| Pressure | 1.0 MPa | |
| Suction height | ≤ 6 meters | |
| Water diversion time | ≤ 45s | |
| Fire Monitor | Brand & Model | WST PS50 |
| Flow | 3,000 liter/min | |
| Pressure | 1.0 MPa | |
| Jetting range | 60 meters | |
| Angle |
Horizontal 360° slewing Vertical -7° ~ +75° |
|
| Foam Proportional Mixer |
Type |
Manual |
| Ratio |
3% 6% |
|
| Pump Room | Structure |
Steel structure |
| Door |
Three aluminum sliding shutter doors with locks |
|
| Equipment Compartment | Structure |
Steel structure, inside with anti-corrosion treatment, with seal |
| Door |
Aluminum sliding shutter doors with locks |
|
| Electrical |
Light |
Long line fire use warning light with sound and flash light; side with flash lamps; rear with a searh lights |
| Siren |
louder speaker, with 5 tonnes siren |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
