Isuzu giga 12-15 ton curtainsider curtain side trucks use ISUZU origin factory GIGA FTR wide cab chassis, condition new never used, 3 seats with a sleeper bed, ISUZU 4HK1 205HP dieseI engine, manual 6-speed transmission, 295/80R22.5 tires, with one spare tire, 6.3 ton front axle, 13 ton rear axle, air brake, ABS, power assist steering, electric window, air conditioning, multi purpose LCD dashboard, manual cab flip, etc.
【Upper Structure Parameters】
Isuzu giga 12-15 ton curtainsider curtain side trucks, cargo box body, size 8600x2400x2500mm, both side is sliding curtain, manual open and close and locking, back door double open, the back door installed stainless steel hinges/door lock/handles, back with a pulling out stair to get in the box. We also provide Isuzu 5 ton curtain sider truck, Isuzu 15 ton curtainside truck, Isuzu 20`25 ton curtain side trucks for sale.
Model | CLW5120JSQQ6 |
Chassis brand | ISUZU KV100 (new cab) |
Wheeldrive | 4x2 |
New or Used | New |
Overall dimension(mm) | 11000x2550x3950 |
Curtain box body dimension(mm) | 8600x2400x2500, with side sliding curtain at both side |
Gross weight | 18000kg |
Curb weight | 8200kg |
Load | 12-15 ton |
Wheelbase(mm) | 6300 |
Engine power | ISUZU 4HK1 205HP Euro6 engine (can choose removed Adblue tank and DPF) |
Fuel type | DieseI |
Transmission | Manual 6F & 1R |
Brake | Air brake |
Axle load | 1st axle: 6300kg 2nd axle: 13000kg |
Tire | 6+1 pcs, 295/80R22.5 |
Suspension | Heavy Multi Leaf Springs |
Battery | 24V free maintenance battery |
Fuel tank | 200 L |
Max speed | 90km/h |
Box Body Parameters | size 8600x2400x2500 both side is sliding curtain, manual open and close and locking back door double open, the back door installed stainless steel hinges/door lock/handles One side door back with a pulling out stair to get in the box |

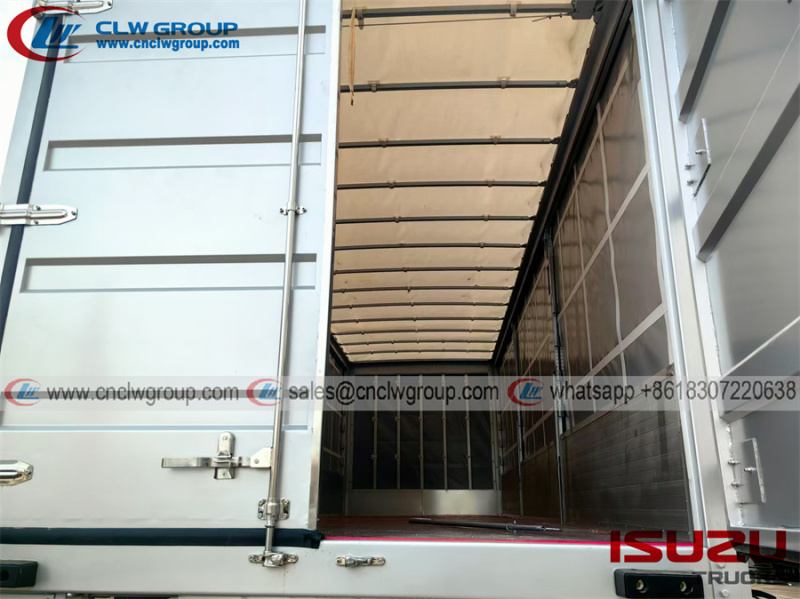

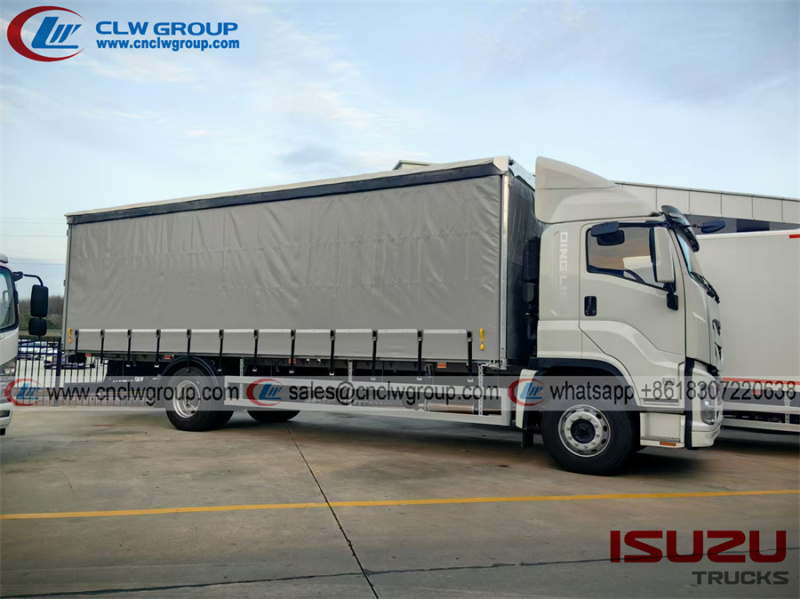

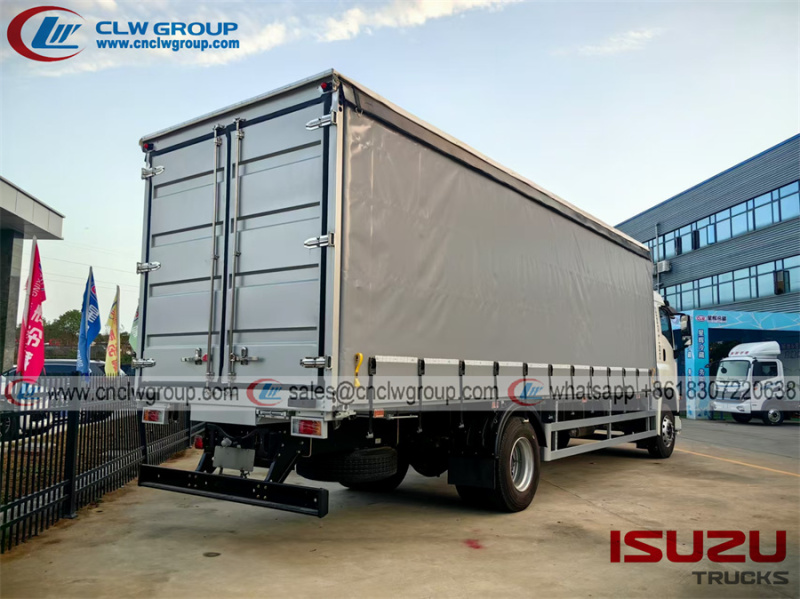

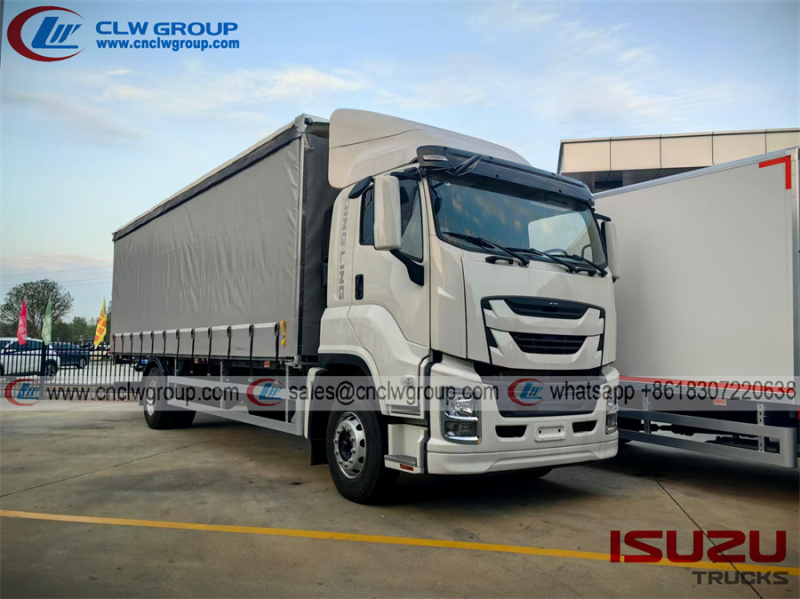

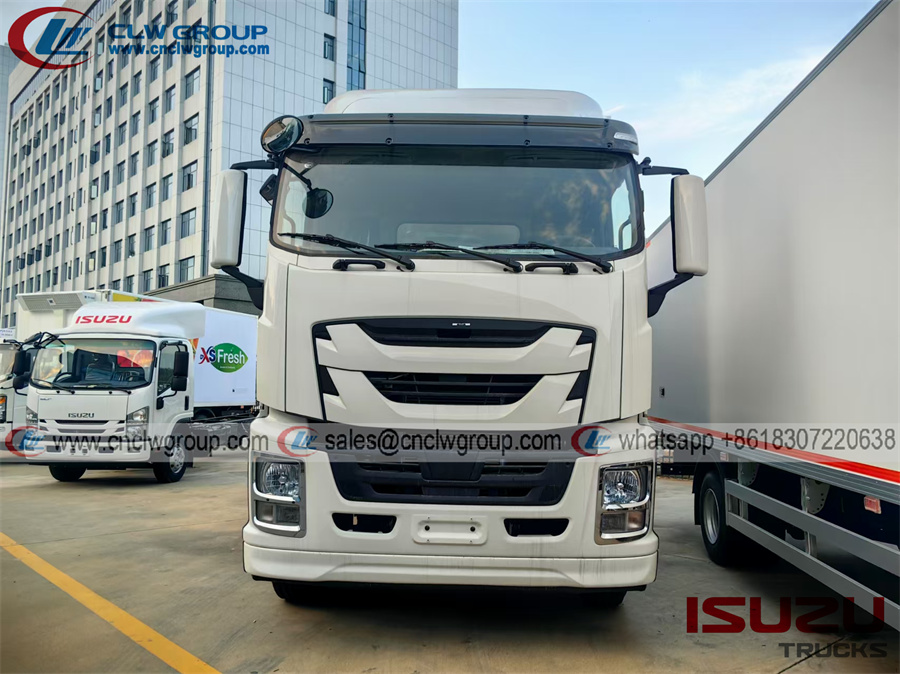

[Multi-directional Images of ISUZU GIGA 12 ton Side Curtain Truck]
back can choose hydraulic lift tailgate, with 1000kg, 1500kg, 2000kg capacity for choose
ISUZU Special Trucks Series: including Isuzu truck mounted crane, Isuzu fuel tanker, Isuzu garbage compactor, Isuzu boom truck, Isuzu aerial platform truck, Isuzu dump truck, Isuzu self loading truck, Isuzu hook lift truck, Isuzu concrete mixer, Isuzu road sweeper, Isuzu water truck, etc.
Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System
In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.
◆Training Service
Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.
◆Warranty Commitment
Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.
◆24 Hours Service
The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.
◆Rescue Service
When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.
◆Customer Return Visit
Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.
Order Process
①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.
②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).
③: Arrange production: Our company arranges workshop production according to the contract requirements.
④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!
Answers to the Questions that Customers Care About before Purchasing?
(1) Free maintenance plan and period?
1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.
(2) What is the price method of free post-parts supply?
1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.
(3) After-sales service method?
The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.
(4) Technical training program?
The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.
(5) How to transport and load the vehicle?
According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.
(6) What is the time to pick up the car at the factory?
Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)
(7) Can't we go to China abroad? Want to see the car to see the factory how to do?
We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
