【Chassis Parameters】
ISUZU GIGA 7.5m refrigerated trucks with thermo king T-880, based on Isuzu GIGA 4x2 cab chassis, LHD, single cab, condition new, 3 seats, 5700mm wheelbase, ISUZU 4HK1 205HP Euro6 dieseI engine, manual 6-speed transmission, 6+1 pcs 295/80R22.5 tires, with one spare tire, 6.3 Ton front axle, 13 Ton double redution rear axle, air brake, abs, 200L fuel tank, power assist steering, with air conditioning, power window, etc.
Also can choose ISUZU 6HK1 240HP Euro6 engine, with 8-speed gearbox;
Also available different capcity of ISUZU refrigerator trucks: Isuzu 5t refrigerator truck, Isuzu 10 ton refrigerated truck, Isuzu 15 ton fridge refrigerator truck, Isuzu 20 ton ton refrigerated truck for sale, and Isuzu 12 wheeler heavy duty freezer trucks, with good quality and good price for sale.
【Upper Structure Parameters】
ISUZU GIGA 7.5m refrigerated trucks with Thermo King T-880: Insulation box size 7500x2400x2500mm, single axle large box volume; insulation box material outer and inner plate are FRP panel, middle with 80mm insulation layer; Refrigeration unit of reefer van truck is American brand Thermo King T-880E independent -18℃ cooling system, lowest temperature can reach -18℃ capacity, optional to install with electric standby system, 380V/3-phase and heating function.
Refrigeration unit brand options of freezer van truck: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
Model | CLW5180XLCQ6 refrigerated truck |
Chassis brand | ISUZU |
Wheeldrive | 4x2 LHD |
New or Used | New |
Overall dimension(mm) | 9200x2600x3950 |
Insulation box dimension(mm) | 7500x2400x2500 |
Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
Refrigeration unit |
American Thermo King T-880E -18℃~ 0 ℃ Options: electric standby, 380V/3-phase/50Hz Panel control system in drive cab, easy access and monitoring |
Hydraulic Tailplate(optional) | 2 ton hydraulic lifting tailplate, with remote control |
Gross weight(kg) | 18000 |
Curb weight(kg) | 6800 |
Designed Load Weight(kg) | 12-15 tons |
Wheelbase(mm) | 5700 |
Engine | ISUZU 4HK1 205HP (or 6HK1 240HP option) 205HP, 5.193L |
Fuel type | DieseI |
Transmission | Manual, 6 forward and 1 reverse |
Brake | Air brake, ABS |
Axle load(front/rear) | 6.3 ton / 13 ton |
Tire | 6+1 pcs, 295/80R22.5 tires |
Max speed | 90km/h |
Others | Power assist steering, with air conditioning, 200L fuel tank, etc. |
OPTIONAL EQUIPMENT |
1. Hydraulic tailgate plate, 1 ton, 1.5 ton, 2 ton options; |
2. ventilation slots on floor; | |
3. Meat hook & rails on roof; | |
4. Carrier brand, China brand refrigeration units options; | |
5. Heating function for accines, medicines, etc. |

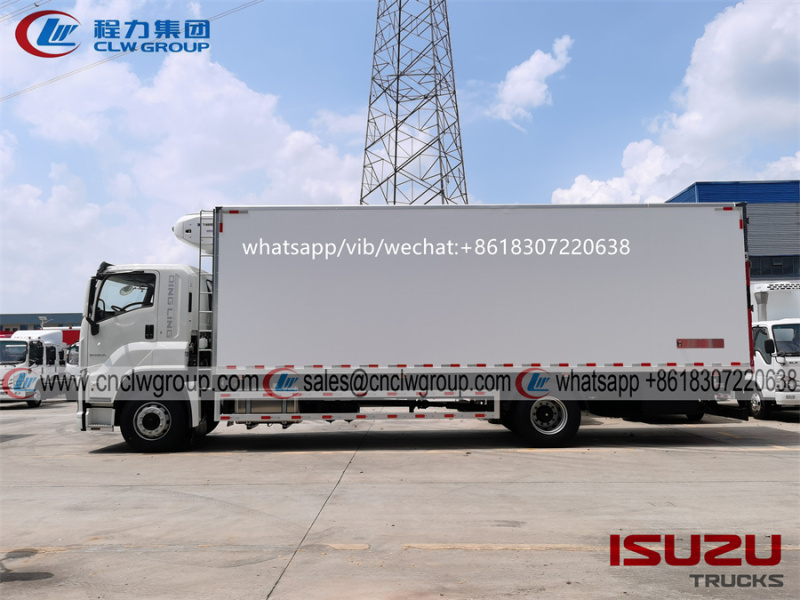

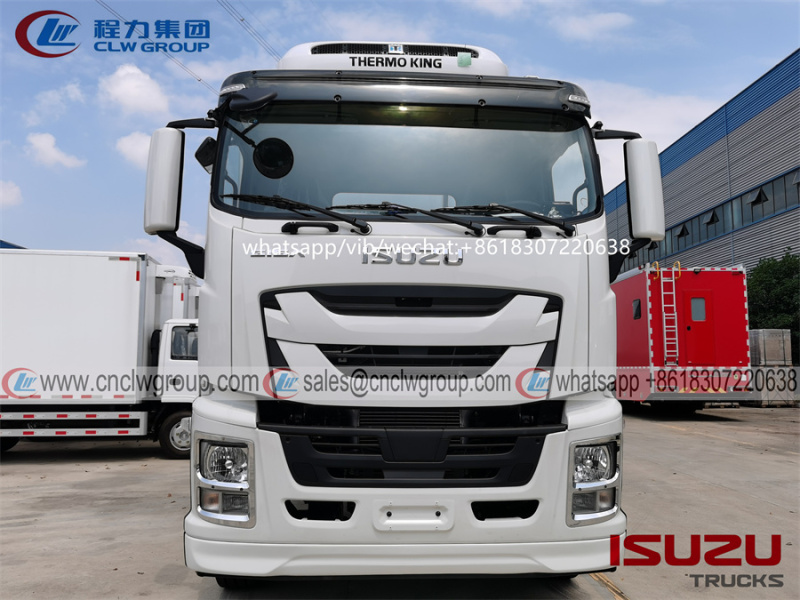

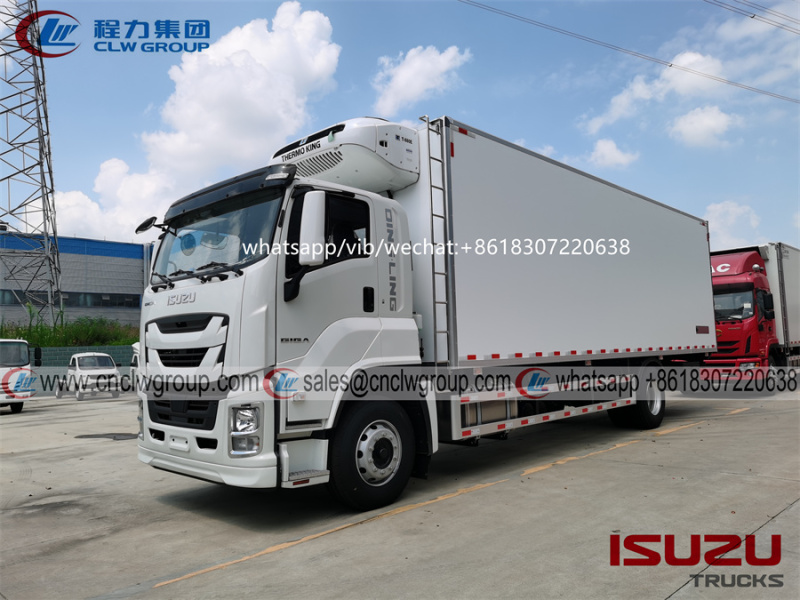

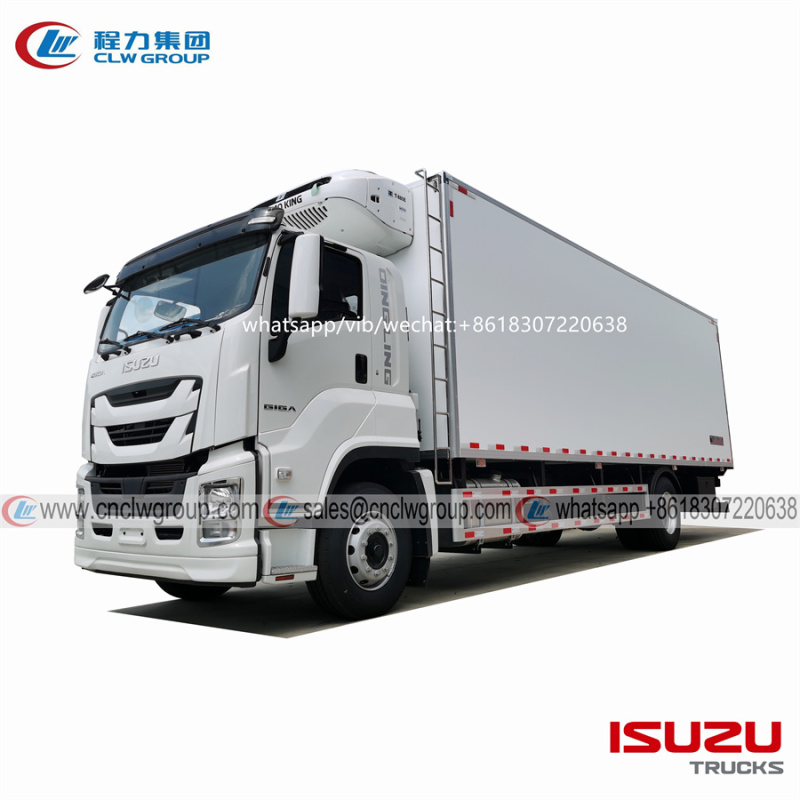

More Pictures of ISUZU GIGA 7.5m refrigerated trucks with Thermo King T-880:
Main structures of ISUZU GIGA 7.5m refrigerated trucks with Thermo King T-880:
Different devices and configurations you can choose for your ISUZU GIGA 7.5m refrigerated trucks with Thermo King T-880
the additional items specially for ISUZU GIGA 7.5m refrigerated trucks with Thermo King T-880:
- For refrigerated van load capacity, we have 1 ton refrigerated van, 2~3 tons refrigerated van, 3~5 tons refrigerated van, 6~8 tons refrigerated van, 8~10 ton refrigerated van, 10~15 ton refrigerated van,15-20 ton refrigerated van,20-25 ton refrigerated van,25-30 ton refrigerated van,over 30 tons refrigerated van;
- For refrigerated truck brand, we have dongfeng refrigerated truck,foton refrigerated truck,isuzu refrigerated truck,howo refrigerated truck, shacman refrigerated truck,jmc refrigerated truck,jac refrigerated truck,kama refrigerated truck,iveco refrigerated truck,clw refrigerated truck,hino refrigerated truck,benz refrigerated truck,volvo refrigerated truck,etc.
- For refrigerator truck box length, we can produce from 2 meters to 16 meters long truck type or trailer type.
If you need refrigerator trucks or van, please contact us freely.
Other Similar Refrigerator Trucks for Comparison:
ISUZU 700P 6.8m 10T Refrigerated Truck: | HOWO 6x4 8.5m 20-25T Refrigerated Truck: | Dongfeng 6x2 9.4m 20T Refrigerated Truck: |
![]() |
![]() |
![]() |
ISUZU 700P 4x2 Chassis 4HK1 190HP Euro6 diesel engine 6-speed manual gearbox 235/75R17.5 tyres 4T/7T axle load air brake, abs power steering, power window, central lock, air conditioning 5200mm wheelbase 6800*2300*2400mm box body Thermo King -18 non-independent refrigeration unit that driven by truck engine Load: ≤ 10 tons |
HOWO 6x4 Chassis Weichai 340HP Euro2 diesel engine 10-speed manual gearbox 295/80R22.5 tyres 7.5T/2* 16T axle load air brake power steering, power window, air conditioning 5225+1350mm wheelbase 8500*2400*2500mm box body Thermo King -18 independent refrigeration unit that driven by truck engine Load: ≤ 25 tons |
Dongfeng 6x4 Chassis Cummins 260HP Euro2 diesel engine 9-speed manual gearbox 11.00R20 tyres 5T/2* 10T axle load air brake power steering, power window, air conditioning 5900+1350mm wheelbase 9500*2400*2500mm box body Thermo King -18 independent refrigeration unit that driven by truck engine Load: ≤ 20 tons |
*Click the pictures or product name to jump to new page of the product to know more details. Or directly contact our sales experts to tell your demands for refrigerated trucks getting price and quotations at whatsapp +8618307220638, e-mail: [email protected]. Welcoem your calling.
Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System
In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.
◆Training Service
Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.
◆Warranty Commitment
Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.
◆24 Hours Service
The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.
◆Rescue Service
When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.
◆Customer Return Visit
Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.
Order Process
①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.
②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).
③: Arrange production: Our company arranges workshop production according to the contract requirements.
④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!
Answers to the Questions that Customers Care About before Purchasing?
(1) Free maintenance plan and period?
1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.
(2) What is the price method of free post-parts supply?
1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.
(3) After-sales service method?
The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.
(4) Technical training program?
The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.
(5) How to transport and load the vehicle?
According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.
(6) What is the time to pick up the car at the factory?
Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)
(7) Can't we go to China abroad? Want to see the car to see the factory how to do?
We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
