【Chassis Parameters】
JAC 4x2 cab chassis, condition new, single cabin, 2 doors, 3 seats, 3815mm wheelbase, Cummins 154HP Euro 3 dieseI engine, 6-speed transmission, 215/75R17.5 tubeless tires, with one spare tire, 2.5 ton front axle, 6 ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】
Chengli CLW brand fire truck has near 20 years experiences, mainly for fire engine,water supply fire truck,rescue fire truck,fire equipment, special fire truck, etc.

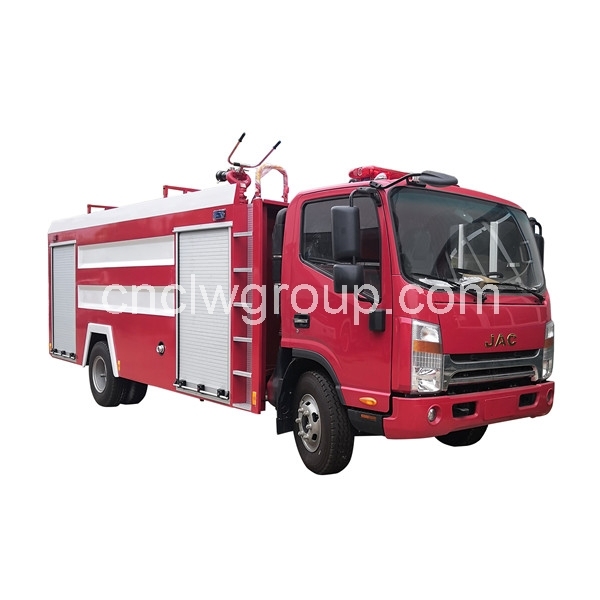

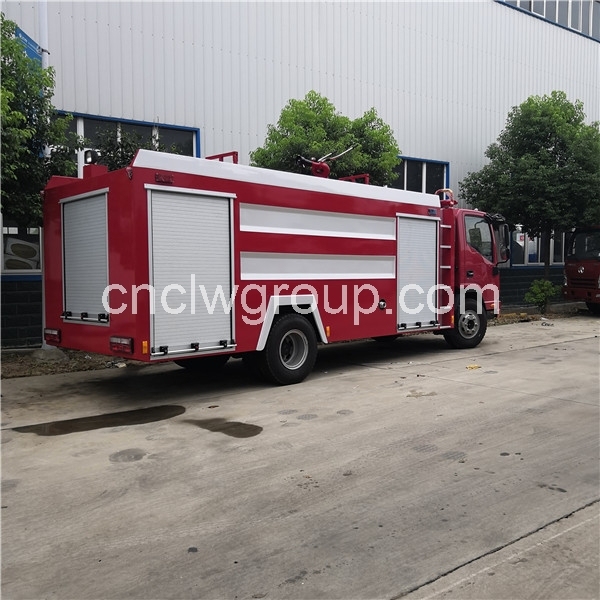

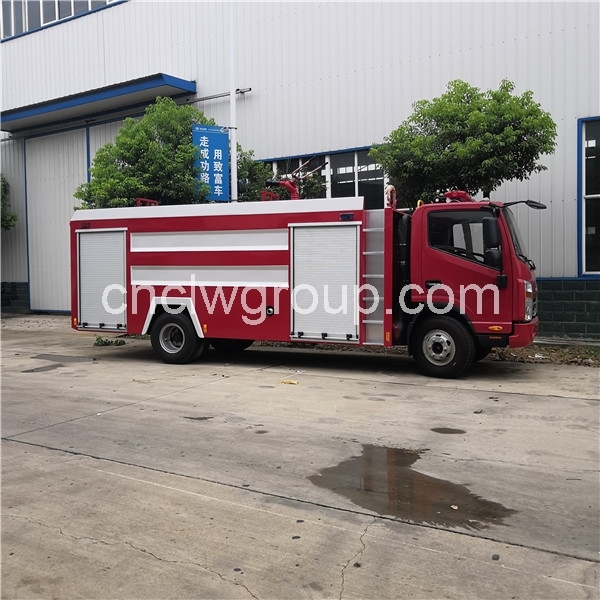

CLW5080GXFSG30HF3 JAC fire engine truck, tank volume 5,000 liter, carbon steel tank body, equippepd with CB10/30 fire pump, PS30 fire monitor, water jetting range can reach 50m; with 2 pcs fire outlet, 1 pcs fire inlet, 1 pcs suction port, equipment compartment, pump room, fire tools and accessories.
| Model | CLW5080GXFSG30HF3 |
| Chassis brand | JAC |
| Wheeldrive | 4x2, LHD |
| Cabin | Single cabin, 3 seats, with two doors |
| New or Used | New |
| Overall dimension | 6850x2300x2950mm |
| Gross weight | 8500kg |
| Curb weight | 5200kg |
| Load | 4300kg |
| Wheelbase | 3815mm |
| Engine power | Cummins ISF3.8 154HP Euro3 |
| Fuel type | DieseI |
| Transmission | Manual 6- speed |
| Brake | Air brake |
| Axle load | 2.5/6.0 Tons |
| Tire | 6+1 pcs, 215/75R17.5 tubeless tires |
| Max speed | 90km/h |
【Fire Fighting Parameters】
| Water Tank | Volume | 5,000 liter |
| Material | Stainless steel 304 | |
| Manhole | 1 pcs, DN460mm | |
| Inlet | 2 pcs | |
| Outlet | DN80mm, manual butterfly valve | |
| Drain valve | 1 pcs | |
| Fire Pump | Brand & Model | Rongsheng or Xiongzhen CB10/30 |
| Flow | 1,800 liter/min | |
| Pressure | 1.0 MPa | |
| Suction height | ≤ 6 meters | |
| Water diversion time | ≤ 45s | |
| Fire Monitor | Brand & Model | WST PS30 |
| Flow | 1,800 liter/min | |
| Pressure | 1.0 MPa | |
| Jetting range | 50 meters | |
| Angle |
Horizontal 360° slewing Vertical -7° ~ +75° |
|
| Pump Room | Structure |
Steel structure |
| Door |
Three aluminum sliding shutter doors with locks |
|
| Equipment Compartment | Structure |
Steel structure, inside with anti-corrosion treatment, with seal |
| Door |
Aluminum sliding shutter doors with locks |
|
| Electrical |
Light |
Long line fire use warning light with sound and flash light; side with flash lamps; rear with a searh lights |
| Siren |
louder speaker, with 5 tonnes siren |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
